Products & solutions Power System Agricultural Machinery Engine
  • 概述
  • 优势参数
  • 应用场景
  • 技术参数
  • High efficiency noise reduction fan, low noise
  • The market has more than 300000 units and is the main force in the wheeled excavator market.
  • Automatic maintenance reminder, intimate;
    Intelligent remote diagnosis, worry free;
    Remote intelligent car lock, worry free property, rest assured
  • Engine capable of adapting large inclination lubrication system to complex terrain
  • Split cylinder block noise reduction gear. Low vibration and low noise
  • Noise reduction gear technology, idle noise 69 dB, leading the international benchmark
  • BoSCH's dedicated non-road common rail system meets phase IV emission standards. World-leading, stable and reliable

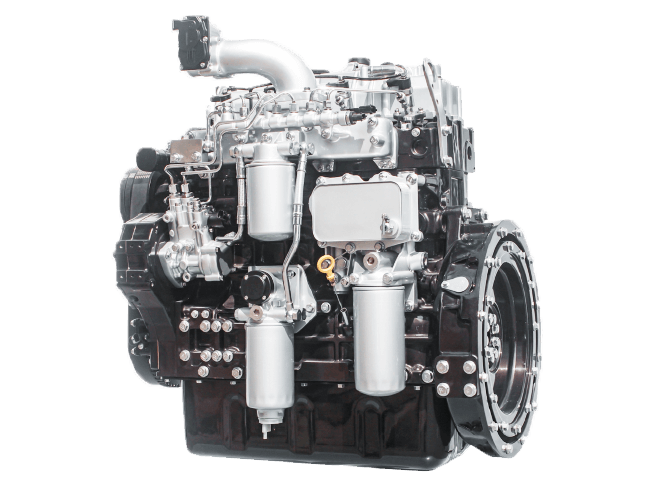

YCF30
Diesel Engine
50-115Ps Power Coverage
Adapted Models：
Create a market of 100,000 units.Yuchai Non-road high-quality and small-displacement "artifact".
Inquiry Now
Product Advantages
More reliable

BoSCH's dedicated non-road common rail system meets phase IV emission standards. World-leading, stable and reliable

Leading parts suppliers at home and abroad；

More than 28 strict machine durability tests；

Statistically, B10 lives up to 1.2 million kilometers ( over 20,000 hours ).

More fuel efficient

High-pressure injection, clean combustion, efficient fuel savings

CKS piston ring with low oil loss

500h ultra-long oil change cycle, saving 1200 yuan per year maintenance costs.

More comfortable

Low noise and low vibration of engine Noise reduction gear technology, high-efficiency noise reduction fan, low noise, idle noise below the industry level of 2 to 3dB (A), vibration is 5% lower than similar products.

Application Scenarios
Technical Parameters
ModelsYCF3050-T420YCF3075-T480YCF30115-T480
Number of cylinders, Bore×Stroke(mm)4-96×1034-96×1034-96×103
Displacement(L)333
Number of valves per cylinder222
Air intake methodNatureTurbochargedcharge inter-cooling
Rated power/speed(kW,r/min)36.8/220055.8/220085/2400
Maximum torque / speed(N·m,r/min)210/1500310/1600430/1600
Low speed torque/speed(N·m,r/min)≥185/1000≥290/1000≥320/1000
Emission levelGB20891-2014 Phase IV Emission Standards
Emission technology routeCRCR+EGR+DOC+DPFCR+DOC+DPF+SCR
External characteristic minimum fuel consumption(g/kW·h)≤210≤210≤205
Oil change cycle500h500h500h
Download
Related Products
YCK16
580~775
Power Range(Ps)
3200
Maximum Torque(N·m)
YCK13
480~580
Power Range(Ps)
2600
Maximum Torque(N·m)
YCK11
350～480
Power Range(Ps)
2200
Maximum Torque(N·m)
YCK09
220～400
Power Range(Ps)
1850
Maximum Torque(N·m)
YCA08
240～320
Power Range(Ps)
1200
Maximum Torque(N·m)
YCA07
125~280
Power Range(Ps)
1080
Maximum Torque(N·m)
YCA05
125～220
Power Range(Ps)
720
Maximum Torque(N·m)
YCF36
65～160
Power Range(Ps)
500
Maximum Torque(N·m)
