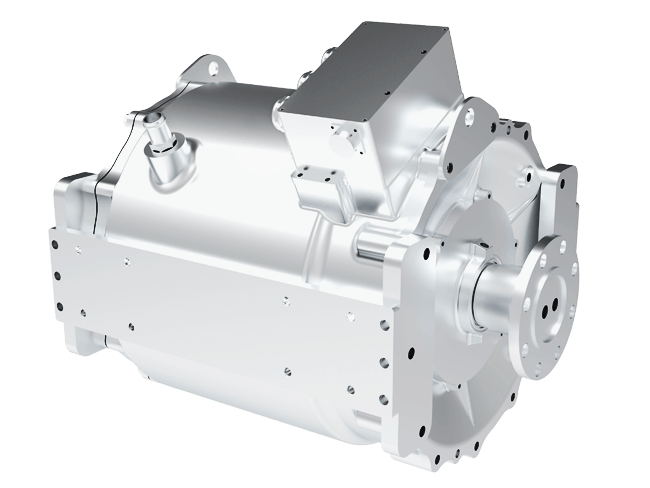

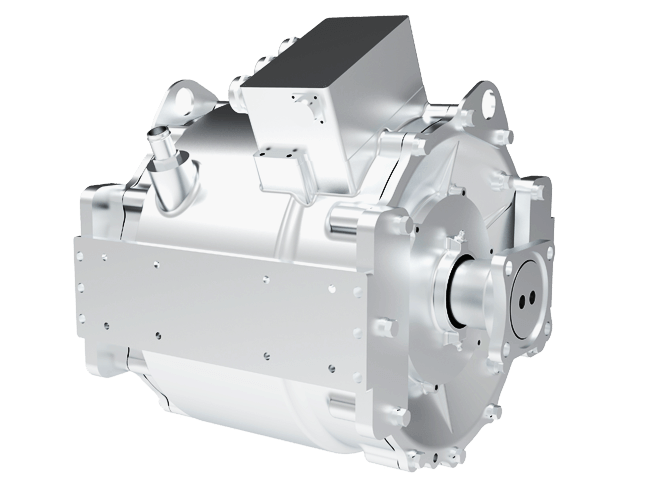

TZ367XS-SL150M
TZ367XS-SL150M
75kw Power Coverage
Adapted Models:6-8m city logistics vehicles, 6-12m passenger cars, etc.
Product Advantages
Application Scenarios
Technical Parameters
NOItemYCEV075-11 platformYCEV085-211 platform
1ModelTZ367XS075TZ327XS085
2Type of The motorpermanent magnet synchronous motorpermanent magnet synchronous motor
3voltage platform V576540
4Rated Power kW7585
5Peak Power kW150180
6Rated torque Nm900900
7Peak torque Nm18002100
8Rated speed rpm800902
9Peak speed rpm30003000
10type of coolingwater-coolingwater-cooling
11Dimension mm476*485*521585*437*418
12Weight kg230203
Product brochures and more are available for download at any time!
