YCK11-60
Diesel Engine
430~500Ps Power Coverage
Adapted Models：Standard tractors, high-efficiency 8×4 trucks, heavy-duty construction vehicles, high-efficiency concrete mixers, truck cranes（50-80 t）, etc.
Lightweight standard truck power benchmark
Inquiry Now
Product Advantages
Fuel efficient

Overhead camshaft engine is more economical.

Fully automatic and intelligent fuel-saving: road spectrum collection, fine calibration, fuel saving in whole journey.

Light weight

270 kg lighter than YC6K12-50(same power).


Small size

The engine is 1250mm long, which is suitable for short-wheelbase lightweight heavy trucks, especially short-wheelbase tractors.

Application Scenarios
Application Cases

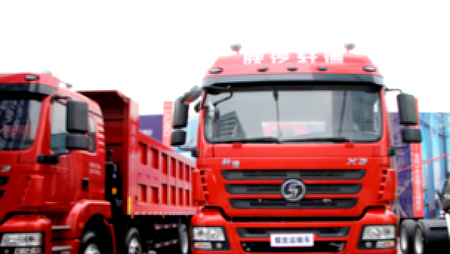

K11With Shaan Motor tractor
K11
k11With Shaan Motor tractor
k11
Technical Parameters
ModelYCK11500-60YCK11460-60YCK11430-60

Disp.（L）

10.98
Number of cylinders-Bore × Stroke（mm）6-123×154
Number of valves per cylinder4
Rated power/Speed（kW/rpm）368/1900339/1900316/1900
Max Torque/Speed（N.m/rpm）2200/1000～14002200/1000～15002100/1000～1400
Technical RouteCommon Rail+EGR+DOC+DPF+SCR+ASC
B10 LIFE（10,000 KM）≥160

Net mass （kg）

≤850
Download
