YCY30-60
Diesel Engine
150-165Ps Power Coverage
Adapted Models：Light Truck, 6 ~ 7.2 m front bus, Road Bus, 7-8 m school bus
High-end light machine, quality enjoyment
Inquiry Now
Product Advantages
Fast acceleration

Double overhead camshaft, the engine accelerates and responds faster.

Fuel efficient

Double overhead camshaft, lower fuel consumption.

Light weight

130 kg lighter than YC4S-50（same power）.

Application Scenarios
Application Cases

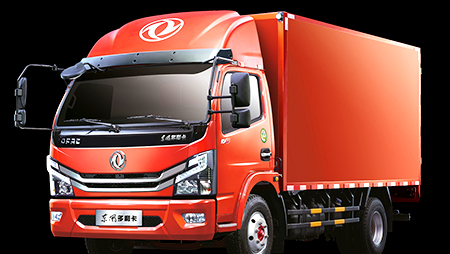

Y30Matching Dongfeng Dorica
Y30
Technical Parameters
ModelYCY30150-60AYCY30150-60YCY30165-60

Disp.（L）

2.97
Number of cylinders-Bore × Stroke（mm）4-94×107
Number of valves per cylinder4
Rated power/Speed（kW/rpm）  110/2800110/2800121/2800
Maximum torque/speed（N.m/rpm）380/1400～2400450/1400～2200500/1400～1800
Technical RouteCommon Rail+EGR+DOC+DPF+SCR+ASC
B10 LIFE（10,000 KM）≥50
Net mass （kg）≤240
Download
Related Products
YC4FA
90~130
Power Range(Hp)
340
Maximum Torque(N·m)
YC4D
120~150
Power Range(Hp)
500
Maximum Torque(N·m)
YC4S
130~170
Power Range(Hp)
600
Maximum Torque(N·m)
YC4E
135~160
Power Range(Hp)
600
Maximum Torque(N·m)
YC4EG
160~220
Power Range(Hp)
810
Maximum Torque(N·m)
YC6J
160~245
Power Range(Hp)
950
Maximum Torque(N·m)
YC6JA
180~260
Power Range(Hp)
1000
Maximum Torque(N·m)
YC6A
240~290
Power Range(Hp)
1150
Maximum Torque(N·m)
YC6L
260~350
Power Range(Hp)
1280
Maximum Torque(N·m)
YC6MJ
420~460
Power Range(Hp)
2110
Maximum Torque(N·m)
YC6MK
300~420
Power Range(Hp)
2000
Maximum Torque(N·m)
YCY24
120~165
Power Range(Hp)
450
Maximum Torque(N·m)
YCY30
150~170
Power Range(Hp)
550
Maximum Torque(N·m)
YCS04
170~220
Power Range(Hp)
850
Maximum Torque(N·m)
YCS06
230~300
Power Range(Hp)
1200
Maximum Torque(N·m)
YCK05
190~260
Power Range(Hp)
950
Maximum Torque(N·m)
YCK08
280~350
Power Range(Hp)
1500
Maximum Torque(N·m)
YCK10
350~400
Power Range(Hp)
1900
Maximum Torque(N·m)
YCK11
430~460
Power Range(Hp)
2200
Maximum Torque(N·m)
YCK12
390~480
Power Range(Hp)
2250
Maximum Torque(N·m)
YCK13
490~560
Power Range(Hp)
2550
Maximum Torque(N·m)
YCK15-60
600~660
Power Range(Ps)
3200
Maximum Torque(N·m)
YCK13-60
530~600
Power Range(Ps)
2600
Maximum Torque(N·m)
YCK11-60
430~500
Power Range(Ps)
2200
Maximum Torque(N·m)
YCK09-60
360~400
Power Range(Ps)
1900
Maximum Torque(N·m)
YCK08-60
300~350
Power Range(Ps)
1450
Maximum Torque(N·m)
YCS06-60
200-270
Power Range(Ps)
1050
Maximum Torque(N·m)
YCK05-60
190-240
Power Range(Ps)
900
Maximum Torque(N·m)
YCS04-60
140-200
Power Range(Ps)
720
Maximum Torque(N·m)
YCY24-60
120-140
Power Range(Ps)
400
Maximum Torque(N·m)
